Description
Product Description:1.Using ultra fine grain size of tungsten carbide powder to extrusion forming
2.The longest tungsten carbide strip&rods with 1100mm was produced by gungnir
3.High wear resistance,high hardness and impact toughness;
4.Other sizes are also available upon your request.

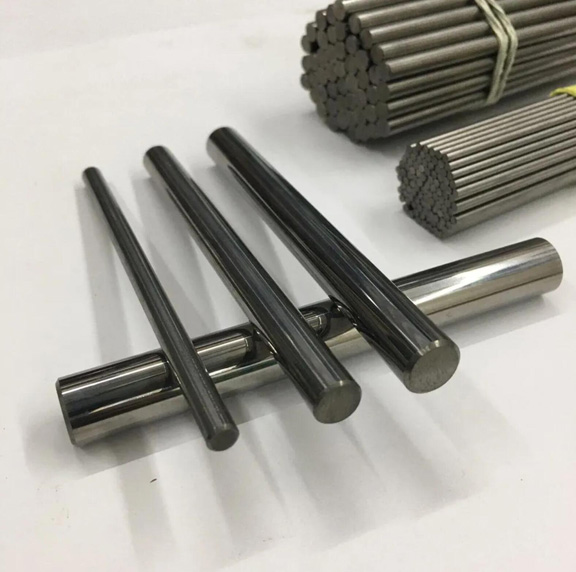

carbide solid rods
Type designations:ØD×L
| TYPE | ØD | L |
| Ø0.5~3.0×330 | 0.5~3.0 | 330 |
| Ø3.0~25.0×330 | 3.0~25.0 | 330 |
| Ø25.0~40.0×330 | 25.0~40.0 | 330 |

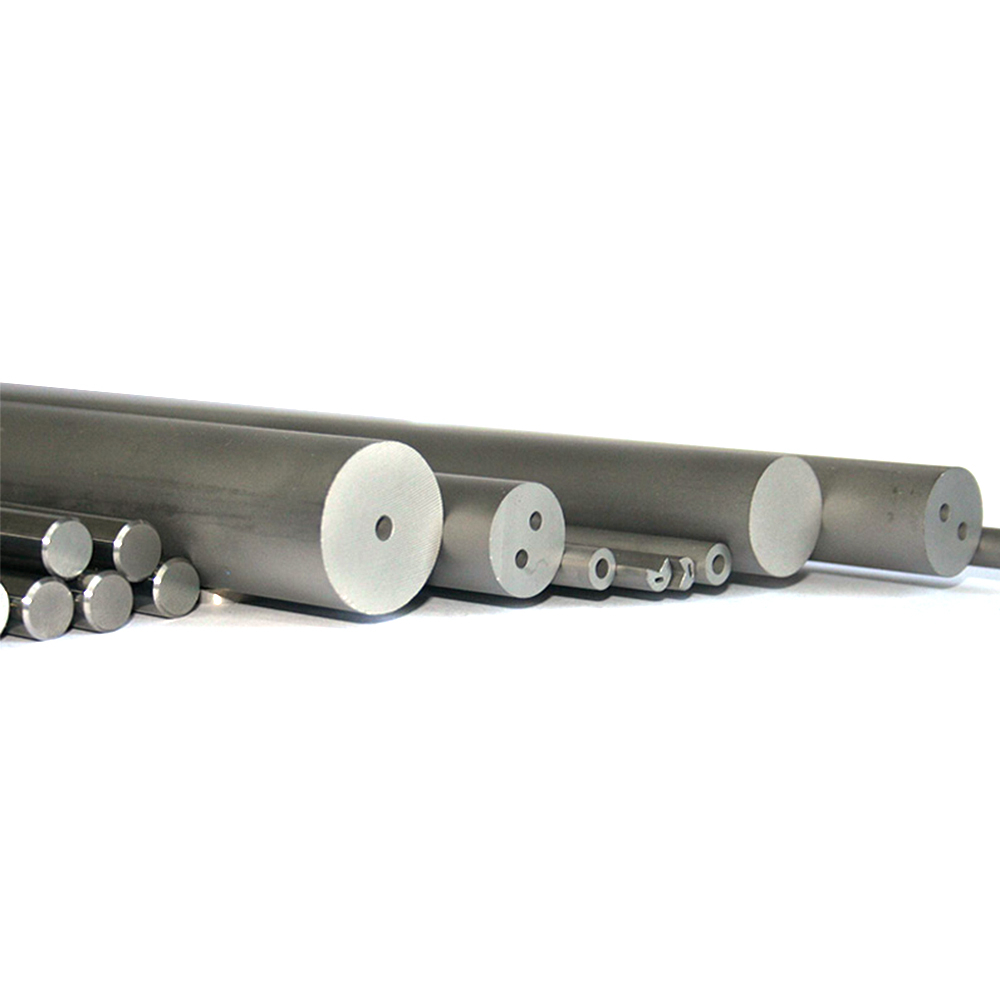

carbide rods with single hole
Type designations:ØD×Ød×L
| TYPE | ØD | Ød | L |
| Ø3×Ø0.2×330 | 3 | 0.2 | 330 |
| Ø8.5×Ø1.5×330 | 8.5 | 1.5 | 330 |
| Ø16×Ø6.7×330 | 16 | 6.7 | 330 |
| Ø26×Ø12.7×330 | 26 | 12.7 | 330 |
carbide rods with double straight holes
Type designations:ØD×Ød×C×L
| TYPE | ØD | Ød | C | L |
| Ø9×Ø1.2×4×330 | 9 | 1.2 | 4 | 330 |
| Ø15×Ø2×6.2×330 | 15 | 2 | 6.2 | 330 |
carbide rods with double helix coolant rods
Type designations:ØD×Ød×C×L-2α
| TYPE | ØD | Ød | C | L | α |
| Ø3.5×Ø1.5×1.8×330-230 | 3.5 | 1.5 | 1.8 | 330 | 230 |
| Ø10.5×Ø1.4×4.8×330-230 | 10.5 | 1.4 | 4.8 | 330 | 230 |
| Ø19×Ø2×10.1×330-230 | 19 | 2 | 10.1 | 330 | 230 |
